Cool Resistors to use in 70's steam engine on smoke unit

hey guys. saw the diagram on the sound of steam board. shows a 220 ohm resistor on the smoke unit to chuff the tender.

Can I get these at radio shack? its a larger brown type. Im going to get ones for my crescent limited, my jersey central blue one, one of my 442 black engines.

I tested the tenders and all are working good off a "good" engine. so its the resistor on the smoke unit.

thanks
Chris
old464 is offline   Reply With Quote
Sponsored Links
Advertisement

Old 02-23-2012, 08:49 PM   #2
gunrunnerjohn
Admin

gunrunnerjohn's Avatar

Join Date: Nov 2010
Location: SE-PA, USA
Posts: 42,862
Scales Modeled: O-gauge 3-rail
Images: 3
You should be able to get a 220 ohm resistor almost anywhere, including RS. Exactly how big is the resistor? "larger brown type" isn't must of a description, how about some measurements of diameter and length? What kind of marking, standard color codes?
gunrunnerjohn is online now   Reply With Quote
Old 02-23-2012, 11:03 PM   #3
servoguy
Station Master

Join Date: Jul 2010
Location: Longwood, Florida
Posts: 2,737
Scales Modeled: O
220 ohm is a common size. RS may have it or they may have it in a smaller wattage. The larger resistors will dissipate more power. Small resistors are usually 1/10 or 1/8 watt. Larger ones go from 1/4 watt to 1/2 to 1 to 2 watts. If the resistor is too small, it will emit smoke.
servoguy is offline   Reply With Quote

Old 02-24-2012, 12:04 AM   #4
T-Man
Yard Master & Research

T-Man's Avatar

Join Date: May 2008
Location: Seacoast, NH
Posts: 10,378
Scales Modeled: Lionel, S, HO
Images: 280
You hit a sore spot. The resistor is 1/2 watt. SOmehow I found out to use the 220k resistor the 220 has more statis between the chuffs. This was my second video.




The smoke unit that has the acuator has 180 ohms,the difference between that and 220 is negligible. So all I can say is test it out. The diagram says 220 ohms also but I wonder if it is a mistake.
__________________
"T" stands for
Trains, Track, Trestles, and more Trains

How-To Column and Signature links Post number 4.


Links under O Scale Information


https://www.youtube.com/channel/UCkM...BLo3pJN1FGE1Gg
T-Man is online now   Reply With Quote
Old 02-24-2012, 06:42 AM   #5
servoguy
Station Master

Join Date: Jul 2010
Location: Longwood, Florida
Posts: 2,737
Scales Modeled: O
Remembering back 35 years, a friend of mine who is also an engineer and a train collector, said the SoS unit makes the chuff by taking the junction noise from a transistor and amplifying it. I think if you look at the circuit you will see a transistor with the base-emitter junction forward biased and nothing connected to the collector. I think it is this junction that makes the noise.
servoguy is offline   Reply With Quote
Old 02-24-2012, 06:52 AM   #6
T-Man
Yard Master & Research

T-Man's Avatar

Join Date: May 2008
Location: Seacoast, NH
Posts: 10,378
Scales Modeled: Lionel, S, HO
Images: 280
So far I have found no other source of info. The higher the resistance the quieter the background noise . The chuff noise is fine.
__________________
"T" stands for
Trains, Track, Trestles, and more Trains

How-To Column and Signature links Post number 4.


Links under O Scale Information


https://www.youtube.com/channel/UCkM...BLo3pJN1FGE1Gg
T-Man is online now   Reply With Quote
Old 02-24-2012, 09:28 AM   #7
gunrunnerjohn
Admin

gunrunnerjohn's Avatar

Join Date: Nov 2010
Location: SE-PA, USA
Posts: 42,862
Scales Modeled: O-gauge 3-rail
Images: 3
I know it's certainly noise, never looked into the details on the one I fixed. I just replaced a cap and gave it back.
gunrunnerjohn is online now   Reply With Quote
Old 02-24-2012, 11:24 AM   #8
T-Man
Yard Master & Research

T-Man's Avatar

Join Date: May 2008
Location: Seacoast, NH
Posts: 10,378
Scales Modeled: Lionel, S, HO
Images: 280

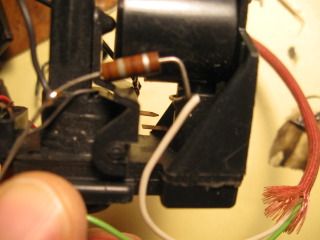

The resistor is in the smoke assy. The one that Jim gave is 180 ohms brown grey brown


,
Maybe it is higher than 1/2 watt, I used the 1/2 watt.
__________________
"T" stands for
Trains, Track, Trestles, and more Trains

How-To Column and Signature links Post number 4.


Links under O Scale Information


https://www.youtube.com/channel/UCkM...BLo3pJN1FGE1Gg
T-Man is online now   Reply With Quote
Old 02-24-2012, 11:26 AM   #9
gunrunnerjohn
Admin

gunrunnerjohn's Avatar

Join Date: Nov 2010
Location: SE-PA, USA
Posts: 42,862
Scales Modeled: O-gauge 3-rail
Images: 3
What's a resistor there for? Could that be for the light bulb on the front? I can't imagine what a resistor of that value would be doing in the actual smoke circuit.
gunrunnerjohn is online now   Reply With Quote
Old 02-24-2012, 12:40 PM   #10
T-Man
Yard Master & Research

T-Man's Avatar

Join Date: May 2008
Location: Seacoast, NH
Posts: 10,378
Scales Modeled: Lionel, S, HO
Images: 280
The resistor is the key to the works. It stops the continual noise/chuff. When bypased you get the chuff.



On my video the 220k quieted the noise until bypassed but the 220 didn't and noise leaked continously.
__________________
"T" stands for
Trains, Track, Trestles, and more Trains

How-To Column and Signature links Post number 4.


Links under O Scale Information


https://www.youtube.com/channel/UCkM...BLo3pJN1FGE1Gg
T-Man is online now   Reply With Quote
